Heavy Duty Greenhouse Kit, Size 30x100x11, Oval Shaped Hoop 30x70mm

Delivery and installation service are available at discounted price.

Detailed Quote For Heavy Duty Greenhouse Frame Work Kit:

For a large greenhouse order, the wholesale price for each unit of 30’x100’x11’ greenhouse framework kit, the discounted price is $3400

This is what is included in the $3400 quote:

1: Dimension:

Hoop width: 30’, greenhouse length: 100’, center ridge height: 11’, hoop spacing: 5’.

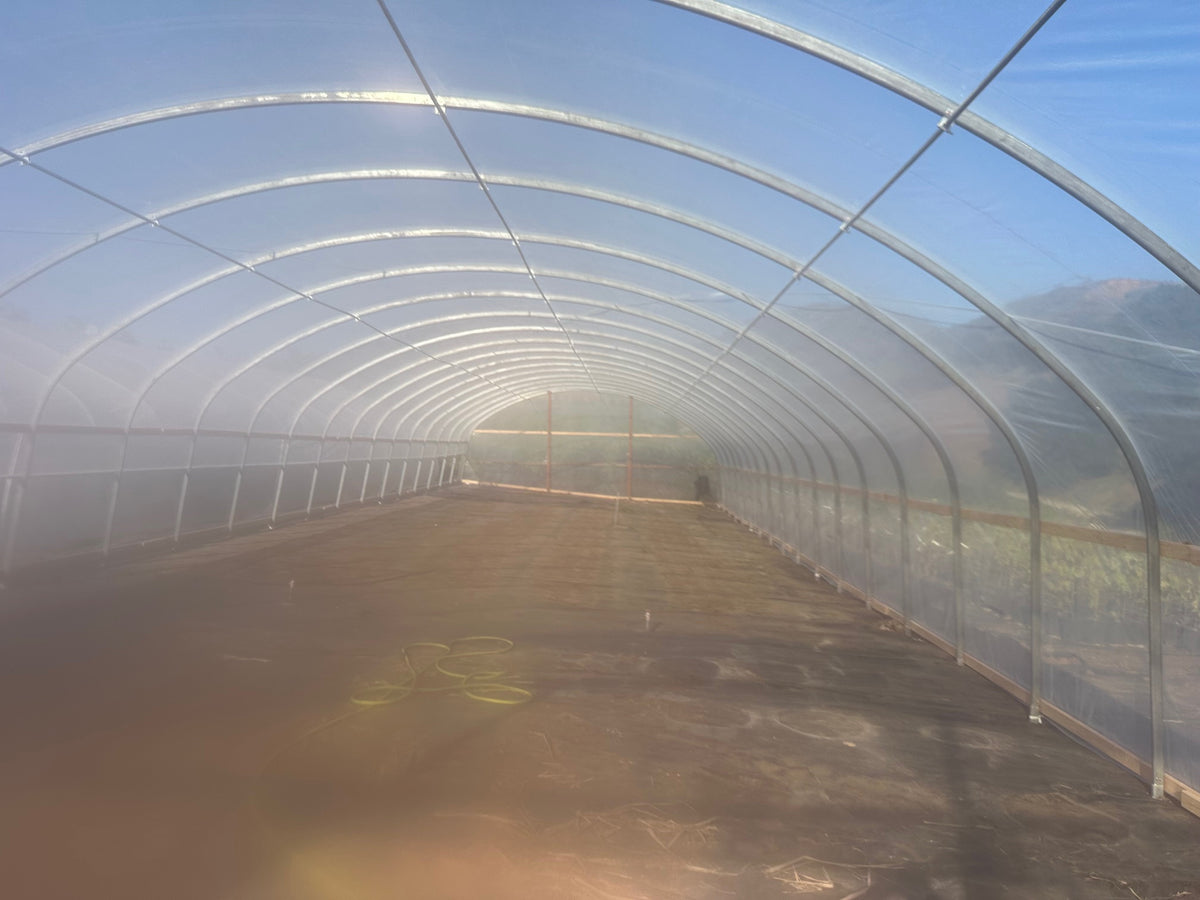

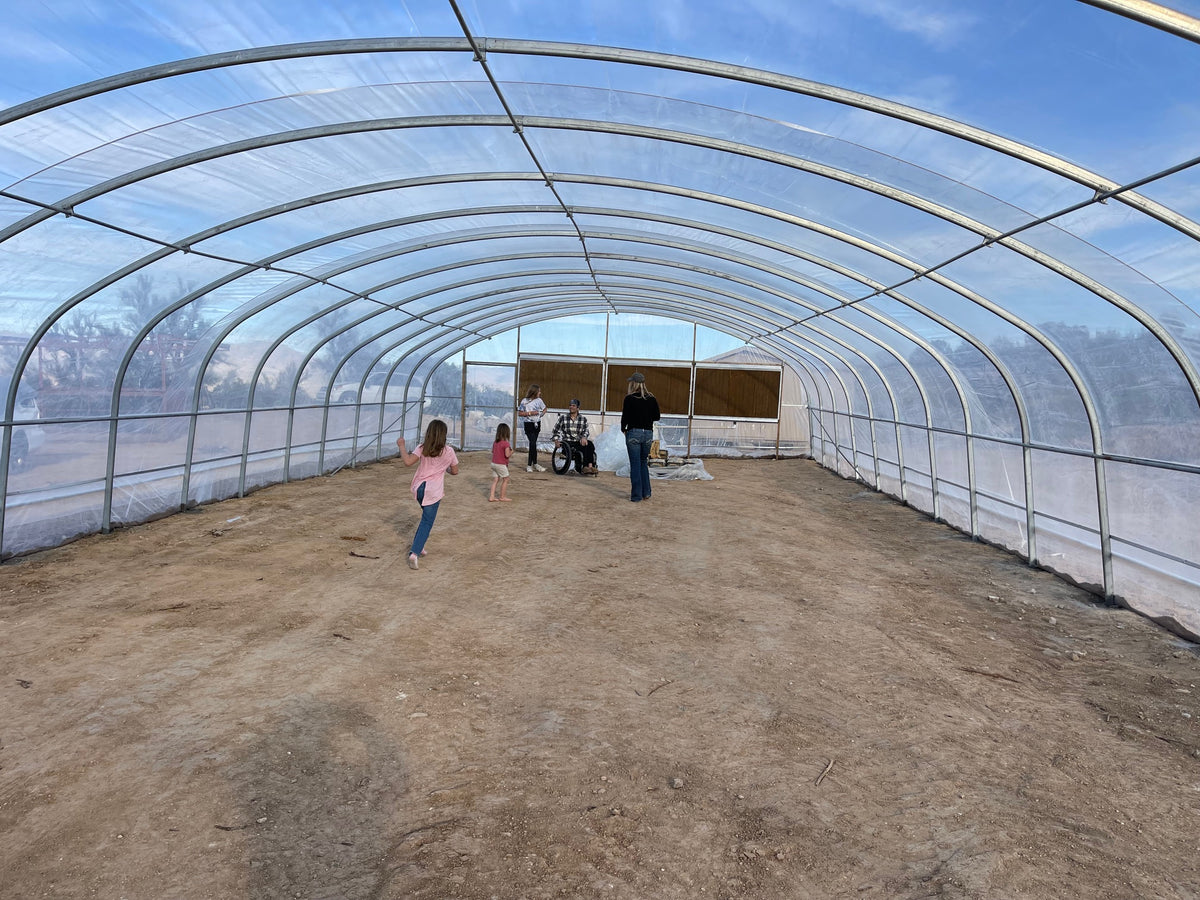

2: Hoops:

Made from hot galvanized 2 ¼ inch outside diameter round pipe, cold formed into an oval shape 30mm x 70mm. Pipe wall thickness is about 14 gauge. These hoops are new, never been used.

Hoops are made of two pieces, joined together in the center.

These are the largest diameter oval shaped hoops you can find on the market.

21 sets of hoops for each greenhouse.

3: Ground Posts:

New matching oval shaped ground posts, 30mm x 70mm, 40 inch long, 42 pieces per greenhouse.

4: End Wall Framing Materials:

End wall is framed with 2x4 lumber, it’s not included in this quote. You need to purchase about 180 linear feet 2x4 lumber to frame the two end walls.

For galvanized metal end wall framing materials, see Optional Item 5.

5: Purlin Pipes:

The greenhouse hoops are supported and linked together with purlin pipes. The purlin pipes are 20 foot long, 1 inch OD, 14 gauge galvanized steel pipes. For each greenhouse, 3 rows (300 linear feet) 15 purlin pipes are supplied. We include 5 extra purlin pipes for you, total 20 pipes.

6: Connectors:

Strong and secure hoop to purlin wedge connectors, 80 sets.

7: Entrance Door:

Greenhouse entrance door made from galvanized steel metal, you can cover it with plastic membrane. 2 slab doors for each greenhouse.

8: Wiggle Wire Channels and Wiggle Wires:

Strong wind resistant wiggle wire channels and wiggle wires, 400 linear feet for each greenhouse.

9: Self Taping Screws:

1 box 500 pieces self taping screws for each greenhouse.

10: Ground Anchor, Strapping Tape:

Ground anchor, 10 pieces.

Wind strapping batten tape, 300 linear feet.

The following items are optional items we carry,  you only pay for items you need.

1: Clear Greenhouse Plastic: $500

New 6mil clear color professional greenhouse plastic, quality with 4 year UV protection, greater than 90% light transmittance, 20% light diffusion, the size is 50’x110’, $500 a piece.

2: Greenhouse Side Ventilation Windows, $400

If you want to build side windows on the two side of your greenhouse, you need these materials:

Plastic roll bar pipes: 10 pieces 20 foot long 1 inch OD galvanized pipes.

Wiggle wire channel and wiggle wire: 200 foot more wiggle wire channel and wiggle wire channels.

Insect blocking screens.

Two manual hand cranks for plastic roll up.

100 pieces 25mm (1 inch) black plastic to roll up pipe clamps

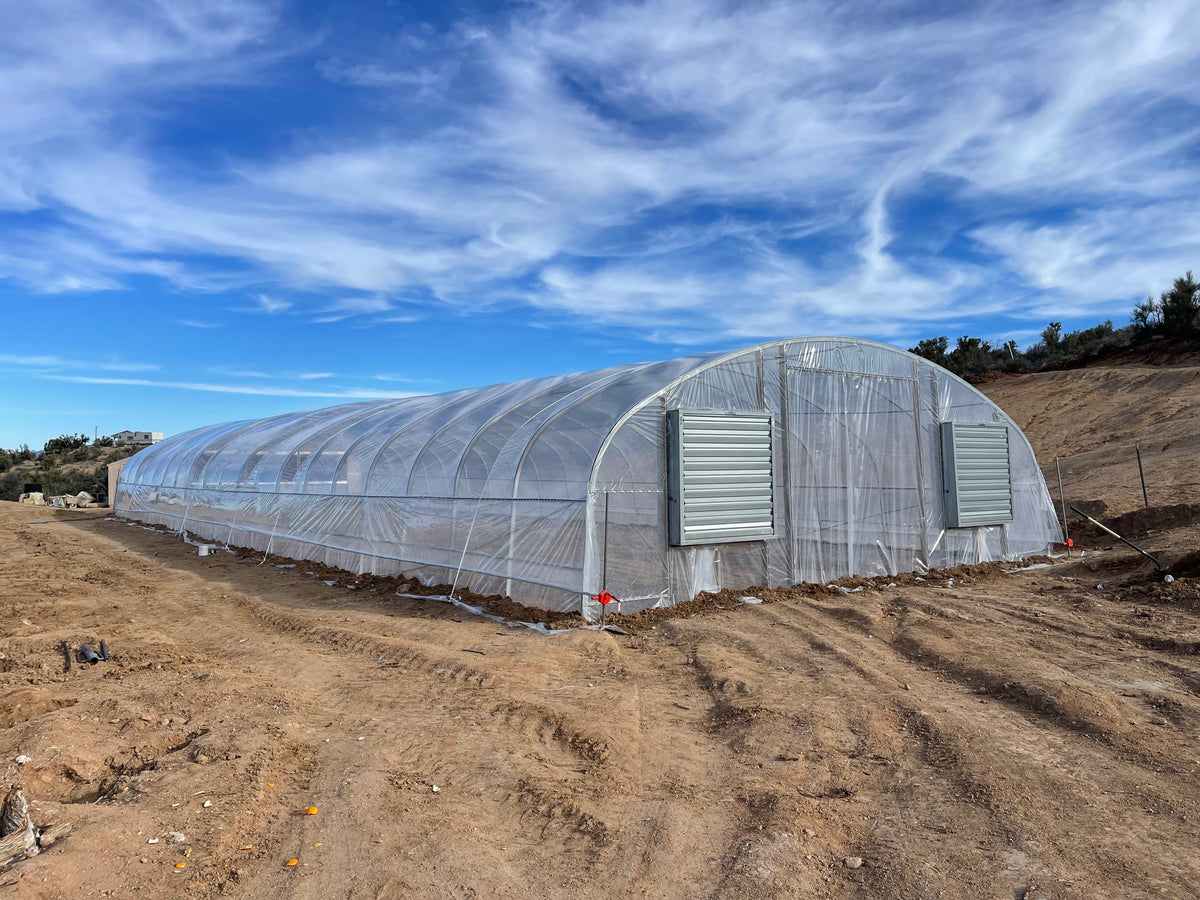

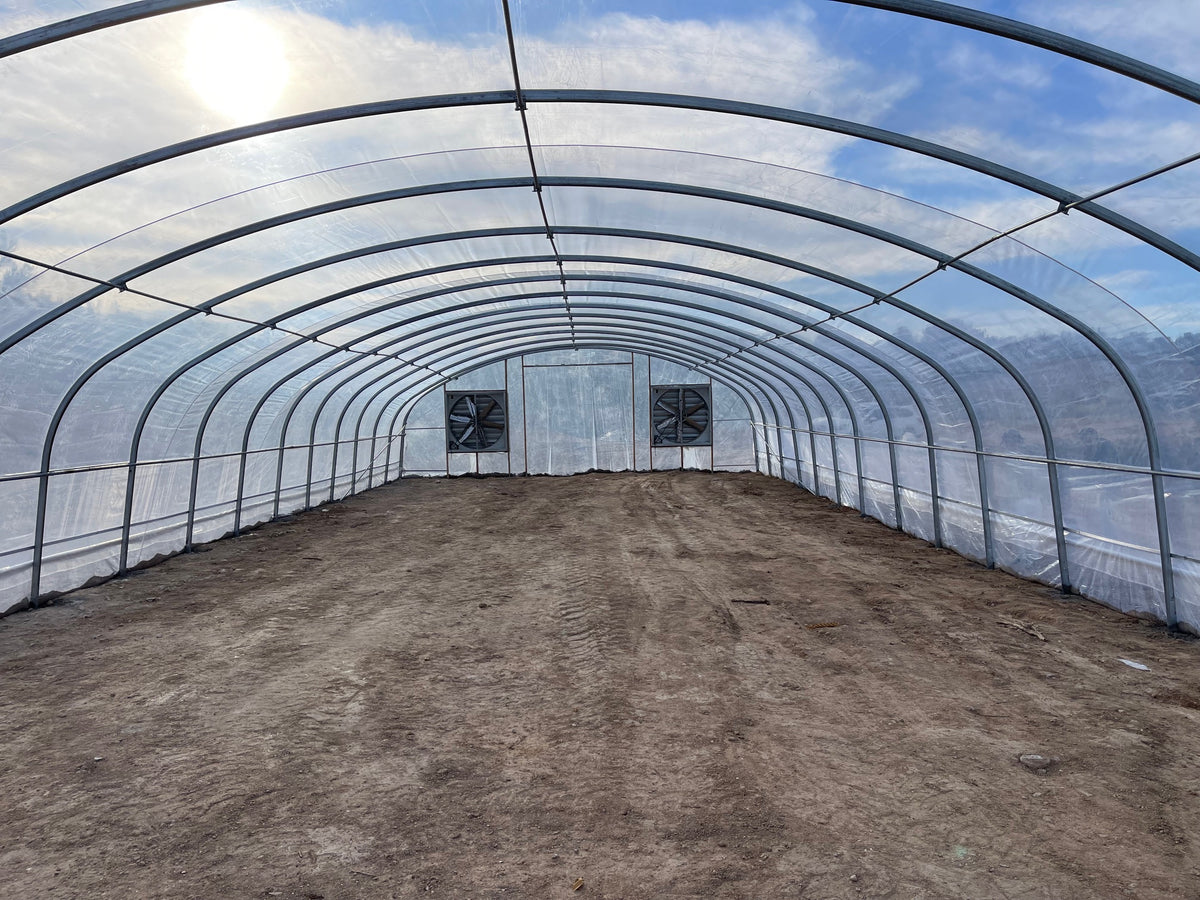

3: Exhaust Fan, 3 40 inch exhaust fan for $1000

Each greenhouse need 3 40 inch 110v 0.75 horse power exhaust fan, two at bottom, one on top center.

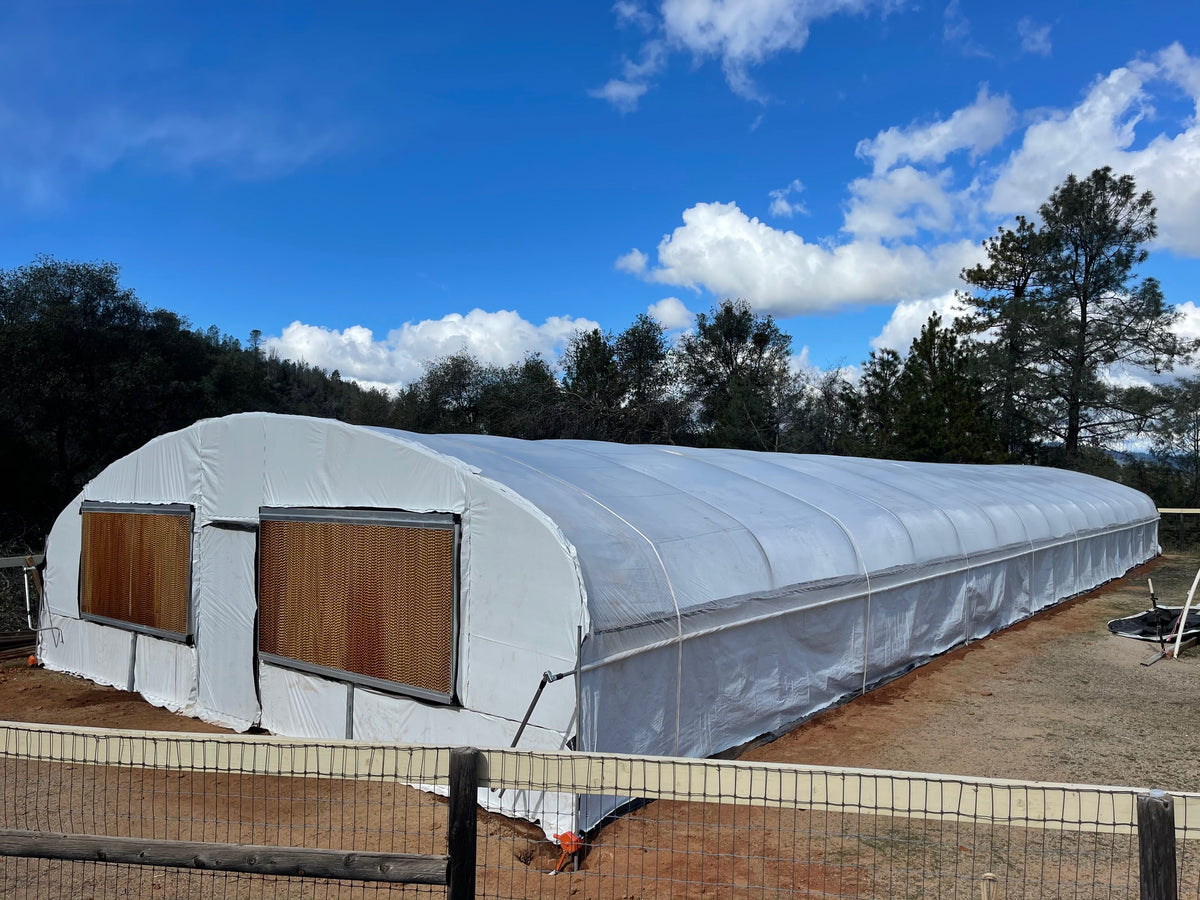

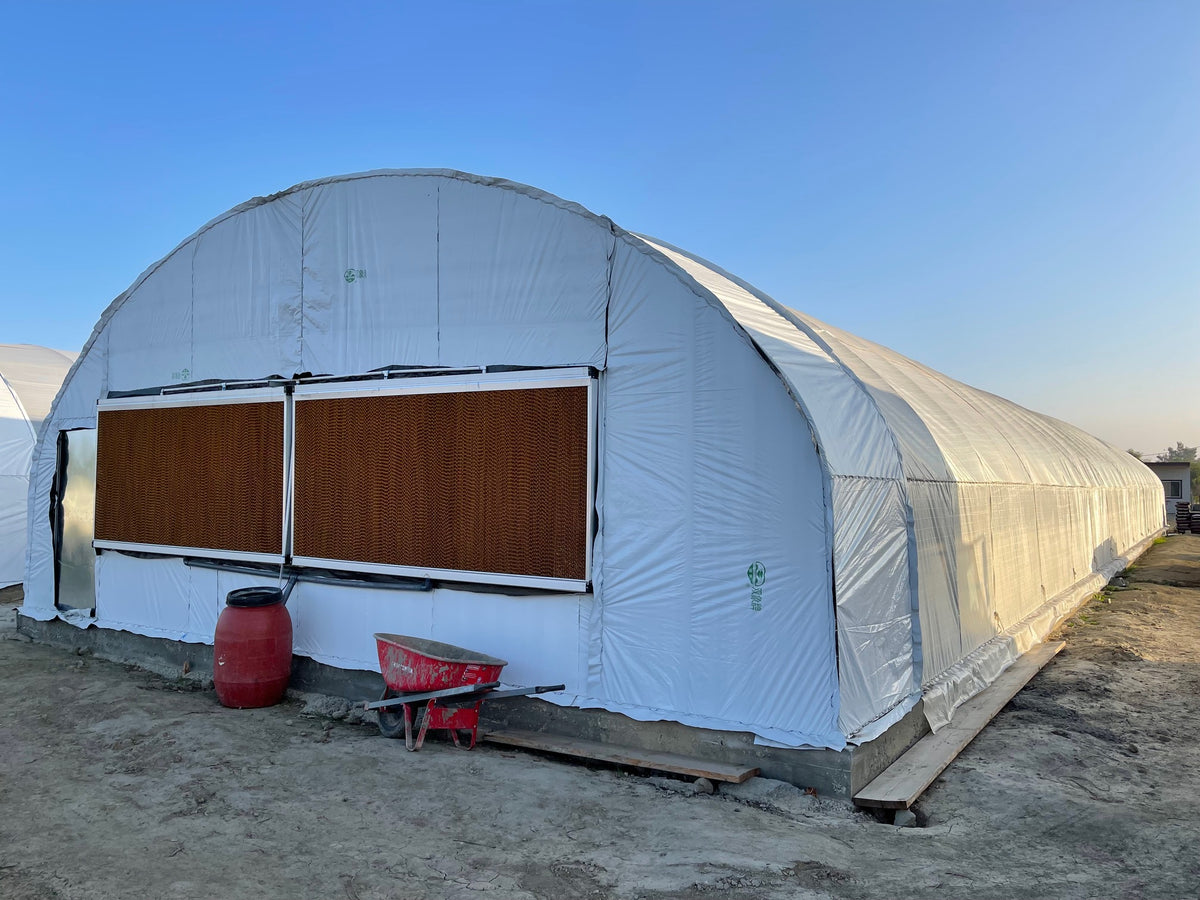

4: Evaporative Cooling Water Walls, 3 for $800

For each greenhouse, 3 pieces of 4’x6.5’x6” evaporative cooling water wall.

5: Galvanized Metal End Wall Framing Materials, $300

We have lightly used variable length 1”x2” galvanized rectangular pipe that can be used to frame the two end walls, 200 linear feet for $300. Metal end walls will not rot and will not grow mold.

6: HAF fan, horizontal air flow fan, 20 inch, 4 for $500

HAF fan, 220 volts, 4000CFM, $125 each, 4 for $500

7: Shading cloth: 33’x80', $250 each

Shading cloth, 33'x80', 35% shading, $250 each

8: Ground Cover: 10'x300', $200

Ground cover, 10’x300’, $200 each

Shipping Information:

Address: The greenhouse materials are located at:

6255 Greasewood Lane, Phelan, California 92371

Greenhouse kit are large and heavy, before you order, please text or call Henry Yu at 630-408-2201 to discuss details for purchasing, delivery, and installation.

Each greenhouse weighs 1500 to 2000 pounds depending on what Optional Items you purchase. The longest pipe is 20 feet long. You need an 18 feet (minimum 16 feet) trailer to take 1 to 3 greenhouses. Bring many, such as 10 tie down to secure the materials on the trailer, so you don't lose all pieces on the road.

26 foot long Uhaul box truck is the best for transporting greenhouse materials, it can load 5 to 10 greenhouses, and no tie down is needed.

In the last two picture, the trailer was loaded with one greenhouse, the 26 foot long UHaul truck was unloading materials for 5 greenhouses.

Frequently Asked Questions

What is included in the Heavy Duty 30x100x11 greenhouse kit?

The complete galvanized steel framework for a 30 ft wide x 100 ft long x 11 ft tall house: 21 sets of 30x70mm oval hoops on 5 ft spacing, 42 ground posts, 20 purlin pipes, 80 hoop-to-purlin connectors, 2 steel entrance doors, 400 linear feet of wiggle wire channels and wires, self-tapping screws, ground anchors, and wind strapping tape. Covering (greenhouse film or polycarbonate) and ventilation equipment are optional add-ons listed on this page.

How strong is the heavy-duty oval hoop frame?

The hoops are cold-formed from 2-1/4 inch OD hot-galvanized round pipe into a 30x70mm oval profile with about 14-gauge wall thickness — the largest-diameter oval hoop on the market. The oval shape resists wind and snow loads far better than standard round pipe, making this kit a true commercial-grade house.

Can I install this greenhouse kit myself?

Yes. The kit is designed for assembly with common tools, and many buyers build it with their own crew. If you would rather not, our professional installation team is available at a discounted price.

How is the kit delivered?

Greenhouse kits ship on our own dedicated truck straight to your site. This kit weighs 1,500 to 2,000 lbs; for pickup bring an 18 ft trailer (16 ft minimum) or a 26 ft U-Haul box truck, and have a level pad with truck access ready.

Does this greenhouse qualify for USDA NRCS high tunnel grants?

Yes. This kit fits the high tunnel design covered by the USDA NRCS high tunnel initiative under EQIP, which provides cost-share assistance to agricultural producers. We have helped growers through the application process and provide the quotes and specifications you need. Call Henry at (630) 408-2201.
