Heavy Duty Light Dep Greenhouse Kit, Size 30x70x11, Oval Shaped Hoop 30x70mm

Delivery and installation service are available at discounted price.

Detailed Quote For Heavy Duty Greenhouse Frame Work Kit:

For a large greenhouse order, the wholesale price for each unit of 30’x70’x11’ greenhouse framework kit, the discounted price is $2500.

This is what is included in the $2500 quote:

1: Dimension:

Hoop width: 30’, greenhouse length: 100’, center ridge height: 11’, hoop spacing: 5’.

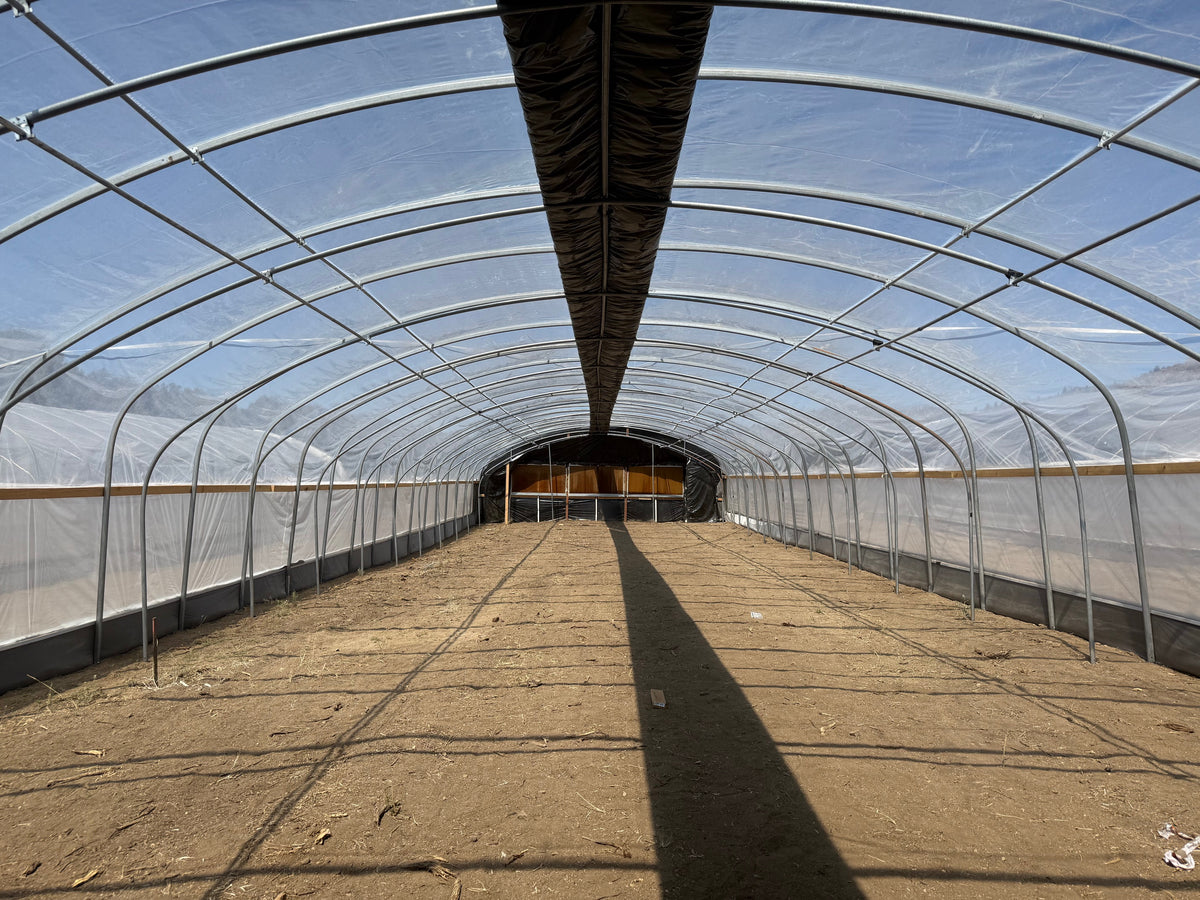

2: Hoops:

Made from hot galvanized 2 ¼ inch outside diameter round pipe, cold formed into an oval shape 30mm x 70mm. Pipe wall thickness is about 14 gauge. These hoops are new, never been used.

Hoops are made of two pieces, joined together in the center.

These are the largest diameter oval shaped hoops you can find on the market.

15 sets of hoops for each greenhouse.

3: Ground Posts:

New matching oval shaped ground posts, 30mm x 70mm, 40 inch long, 30 pieces per greenhouse.

4: End Wall Framing Materials:

End wall is framed with 2x4 lumber, it’s not included in this quote. You need to purchase about 180 linear feet 2x4 lumber to frame the two end walls.

For galvanized metal end wall framing materials, see Optional Item 14.

5: Purlin Pipes:

The greenhouse hoops are supported and linked together with purlin pipes. The purlin pipes are 20 foot long, 1 inch OD, 14 gauge galvanized steel pipes. For each greenhouse, 3 rows (210linear feet) 12 purlin pipes are supplied. We include 4 extra purlin pipes for you, total 16 pipes.

6: Connectors:

Strong and secure hoop to purlin wedge connectors, 60 sets.

7: Entrance Door:

Greenhouse entrance door made from galvanized steel metal, you can cover it with plastic membrane. 2 slab doors for each greenhouse.

8: Wiggle Wire Channels and Wiggle Wires:

Strong wind resistant wiggle wire channels and wiggle wires, 400 linear feet for each greenhouse.

9: Self Taping Screws:

1 box 500 pieces self taping screws for each greenhouse.

10: Ground Anchor, Strapping Tape:

Ground anchor, 7 pieces.

Wind strapping batten tape, 300 linear feet.

The following items are optional items we carry,  you only pay for items you need.

1: Clear greenhouse plastic: $400

6mil clear color professional greenhouse plastic, quality with 4 year UV protection, greater than 90% light transmittance, 20% light diffusion, the size is 50’x85’.

2: Black white 6 mil 100% black out plastic: $400

Light deprivation new 6mil black white plastic, 100% black out.  The size is 45’x85’.

3: Inside second layer hoops, purlin pipes, ground posts: $900

If your area wind is strong, and you want to install your blackout plastic on top of a secondary interior layer of hoops, we have 1 inch OD round pipe hoops available. 14 sets of inside hoops, plus 3 rows, 11 pieces purlin pipes, plus hoop to purlin connection spring connectors 60 pieces.

Inside hoops are installed with 1.25 inch OD, 2 feet long ground posts.

4: Greenhouse ventilation windows on both sides, $300

If you want to build side windows on the two side of your greenhouse, you need these materials:

Plastic roll bar pipes: 7 pieces 20 foot long 1 inch OD galvanized pipes.

Wiggle wire channel and wiggle wire: 140 foot more wiggle wire channel and wiggle wire channels.

Insect blocking screens 70 linear feet.

Two manual hand cranks for plastic roll up.

70 pieces 25mm (1 inch) black plastic to roll up pipe clamps.

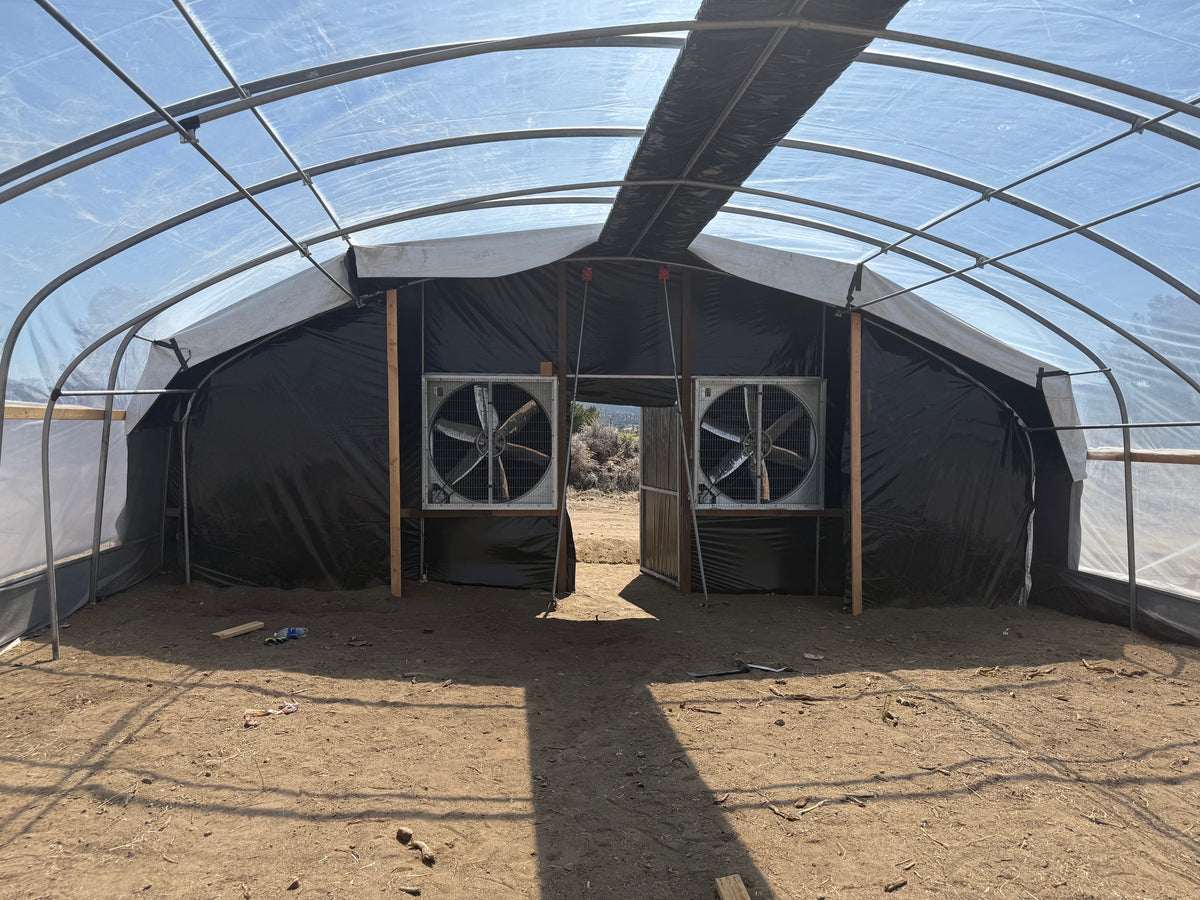

5: Exhaust Fan, 2 40 inch exhaust fan for $700

Each greenhouse is equipped with 2 40 inch 110v 0.75 horse power exhaust fan, two at bottom. 220v exhaust fans are also available.

6: Evaporative cooling water walls, 3 for $800

For each greenhouse, 3 pieces of 4’x6.5’x6” evaporative cooling water wall.

7: Blackout plastic rollup motor and motor controller set, $400

Brand new.

One electric motor controller with no timer. Each controller controls two motors for one greenhouse.

Two roll up motors, 120w roll up motors with a large 1.38 inch roll bar adaptor.

8: Blackout plastic roll up pipes and clamps, $300

8 pieces 20 foot long, 1 1/4 inch OD 14 gauge galvanized pipes to serve as blackout plastic roll bar pipe.

Black 1 ¼ inch blackout plastic to roll bar pipe clamps, 70clamps.

9: Extensible arms that support the two motors, two sets, $100

10: Light traps to cover the 2 40 inch exhaust fans, 2 for $700

Two preassembled 40 inch light traps matching the size of the 40 inch exhaust fans, assembled ready to use.

11: HAF fan, horizontal air flow fan, 20 inch, 2 for $250

HAF fan, 220 volts, 4000CFM, $125 each, 2 for $250

12: Shading cloth: 33’x80', $250 each

Shading cloth, 33'x80', 50% shading, $250 each

13: Ground Cover: 10'x300', $200

Ground cover, 10’x300’, $200 each

14: Galvanized metal end wall framing materials, $300

We have lightly used variable length 1”x2” galvanized rectangular pipe that can be used to frame the two end walls, 200 linear feet for $300. Metal end walls will not rot and will not grow mold.

Shipping Information:

Address: The greenhouse materials are located at:

6255 Greasewood Lane, Phelan, California 92371

Greenhouse kit are large and heavy, before you order, please text or call Henry Yu at 630-408-2201 to discuss details for purchasing, delivery, and installation.

Each greenhouse weighs about 2000 pounds depending on what Optional Items you purchase. The longest pipe is 20 feet long. You need an 18 feet (minimum 16 feet) trailer to take 1 to 3 greenhouses. Bring many, such as 10 tie downs to secure the materials on the trailer, so you don't lose all pieces on the road.

26 foot long Uhaul box truck is the best for transporting greenhouse materials, it can load 5 to 10 greenhouses, and no tie down is needed.

In the last two picture, the trailer was loaded with one greenhouse, the 26 foot long UHaul truck was unloading materials for 5 greenhouses.
